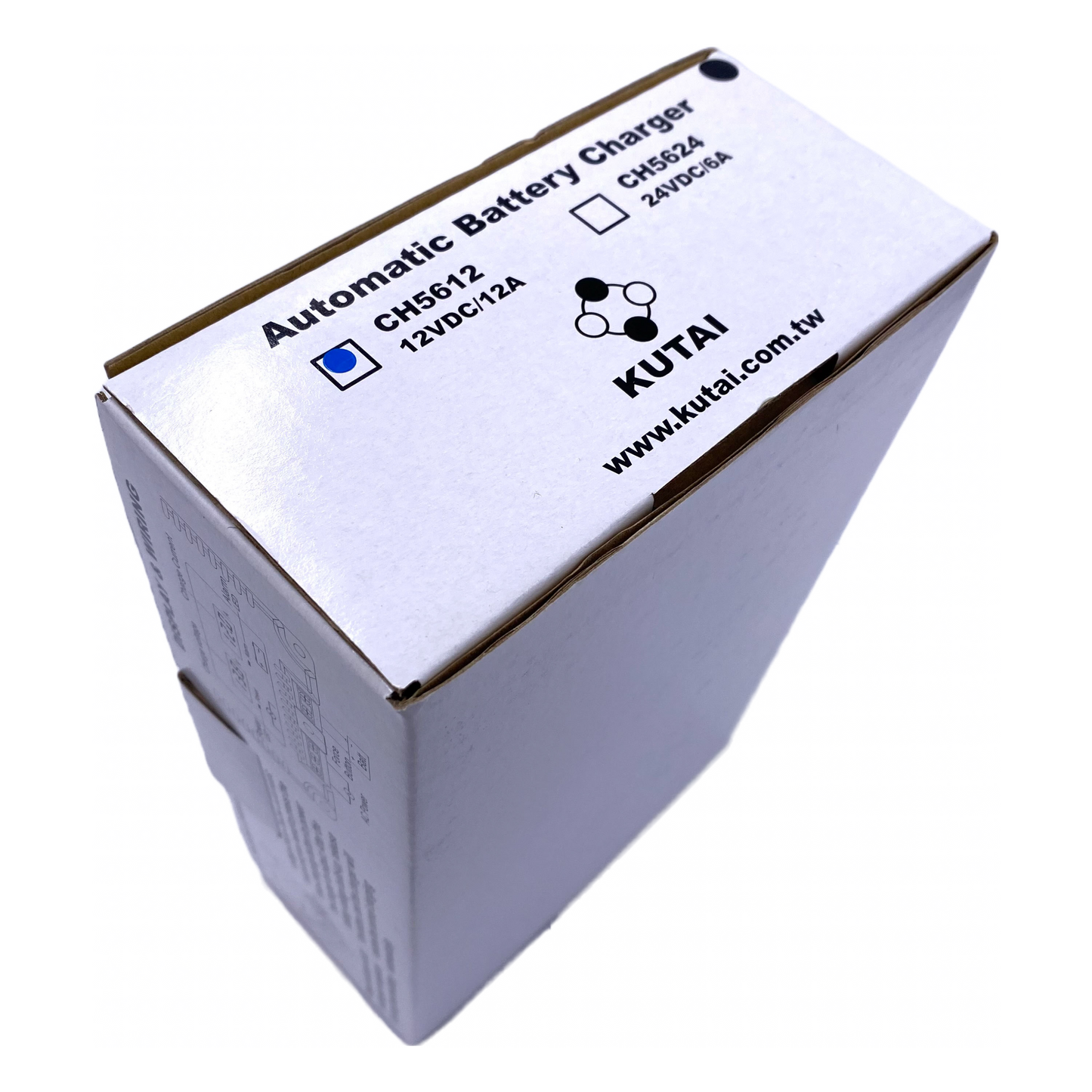

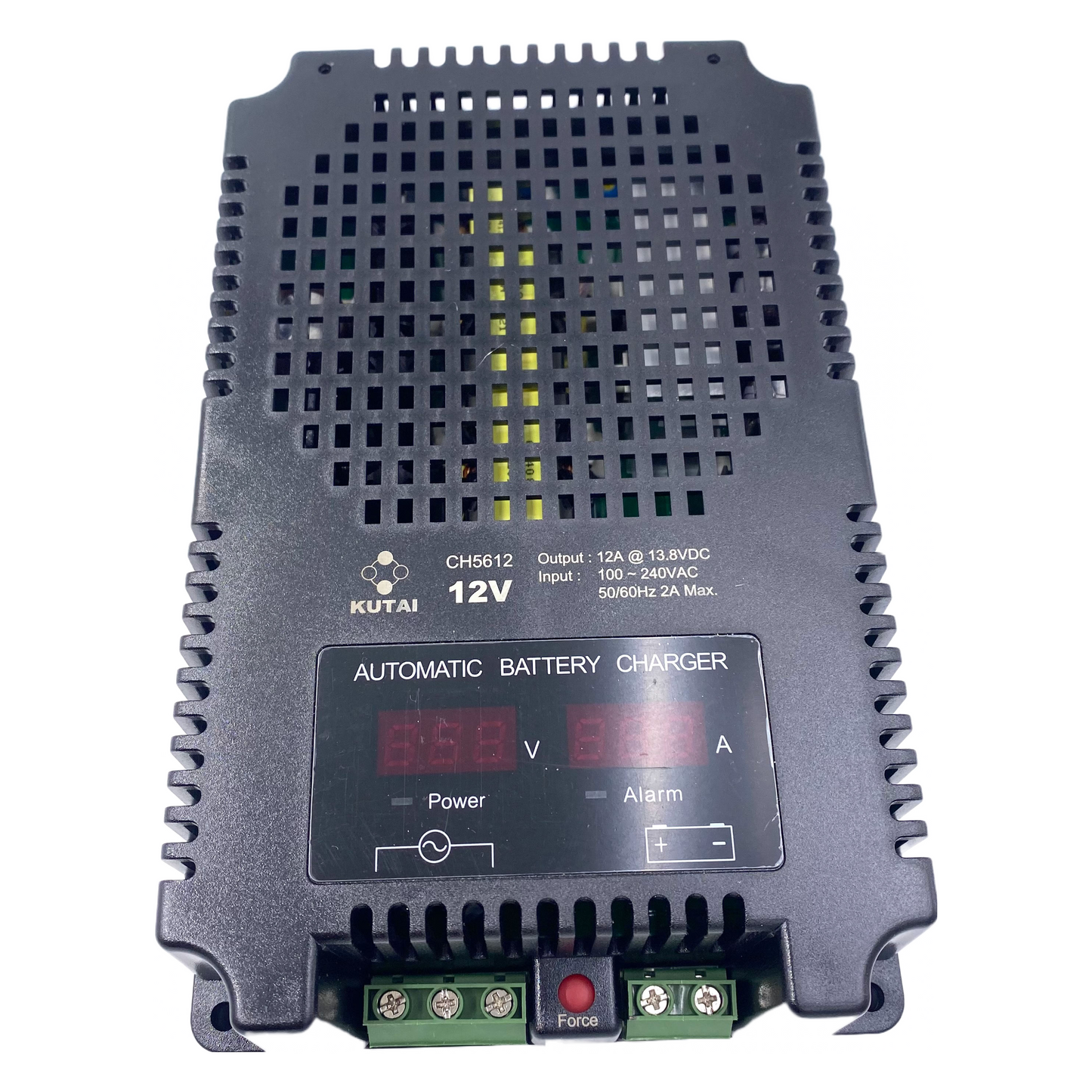

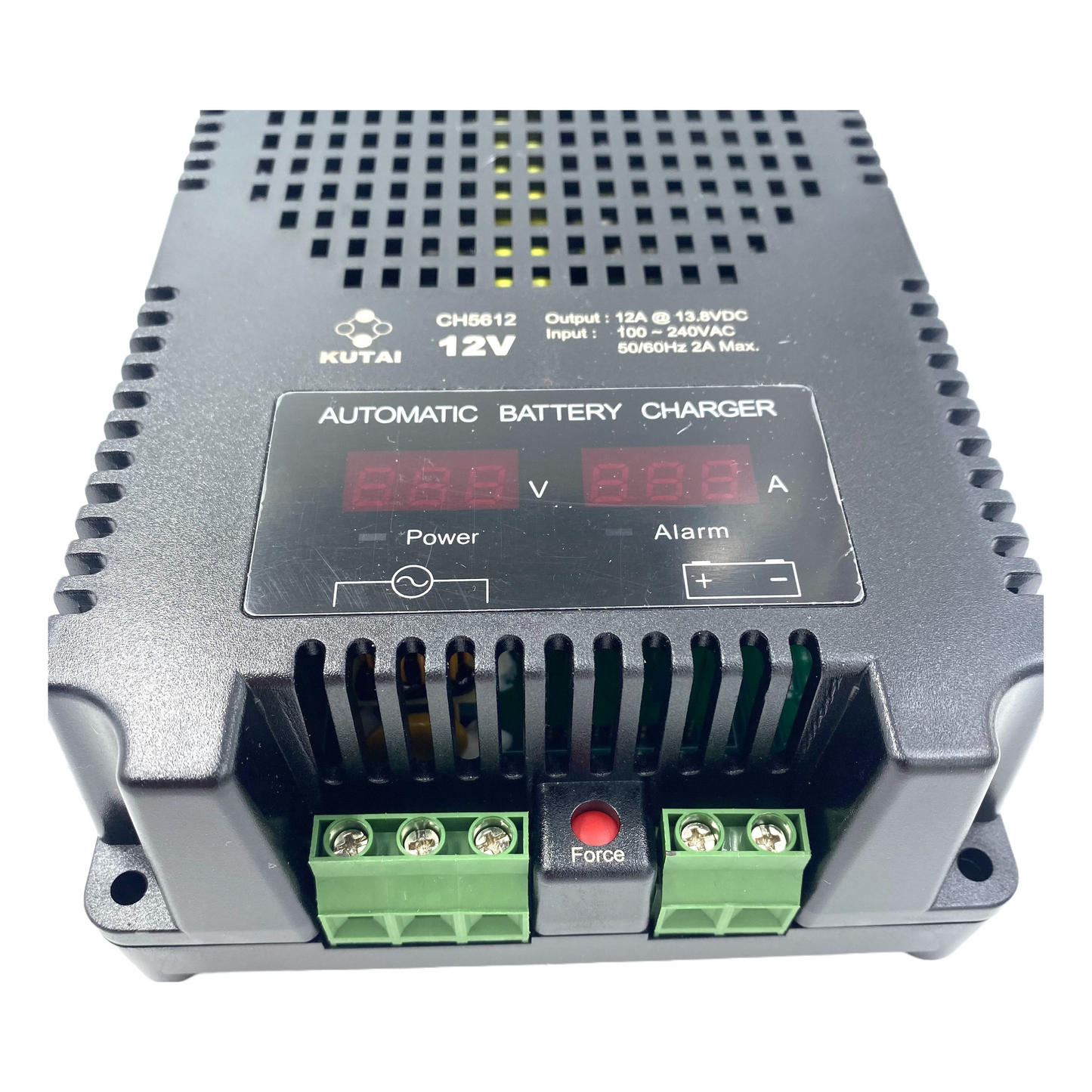

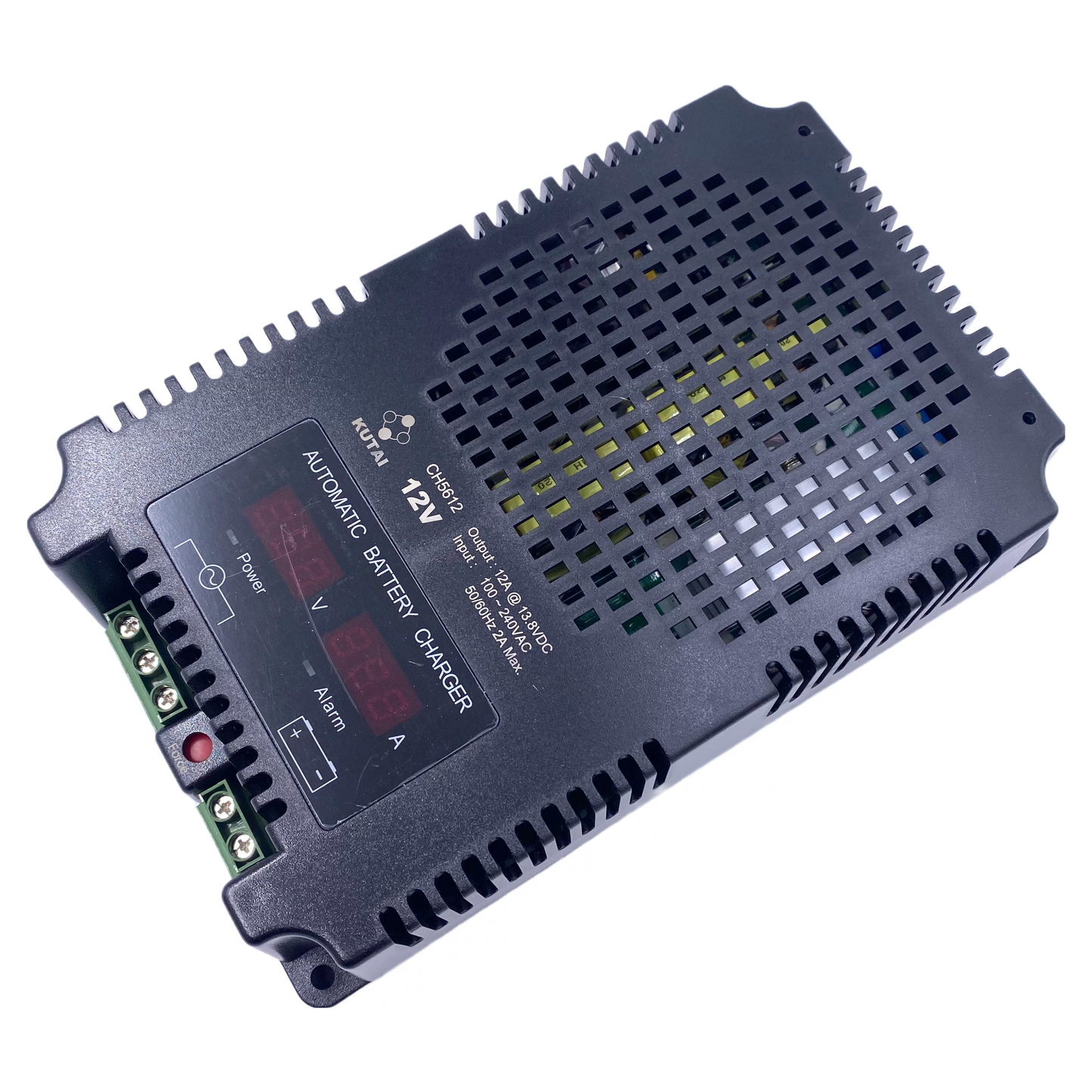

KUTAI CH5612 Automatic Battery Charger

KUTAI CH5612 Automatic Battery Charger

£168.00 GBP
£168.00 GBP
Sale Sold out
Shipping calculated at checkout.

CH5612 12V 12A Intelligent Battery Charger. Fully Automatic and has current limiting, constant voltage float charge mode that prolongs its life and saves you time and money. LEDs indicator provide Charge Voltage/Current info and fault conditions. Ideal for Gel, Lead Acid, and AGM batteries for generator or industrial use.

£140.00 plus VAT

Ex stock - shipped Worldwide. For EURO or USD pricing please contact us:

Sales: info@sp-powerworld.com

Tel: +44 (0)115 923 2568 (United Kingdom)

Tel: (24-hour) +44 (0)7484709956 (United Kingdom)

 Features:

  • Automatic charging under all conditions
  • Current limiting, constant voltage float charge mode that avoids over-charging
  • DC charging current and voltage display
  • Automatically reduce output proportionally when overheat
  • Short circuit & reverse polarity protection
  • DC output Over/Under Voltage protection
  • DC output Over Current protection
  • AC input Over Voltage protection
  • “Force Charge Button” for resume to normal charge from a low residual voltage condition
  • Built-in AC power input micro fuse protection
  • Panel Mount

Specifications:

Power Input
  • Voltage 100 to 265 Vac
  • Frequency 47 to 63 Hz
  • Current 2A
DC Output
  • CH5612 13.8 Vdc, 12A Max.
  • CH5624 27.6 Vdc, 6A Max.
DC Voltage Regulation
  • Less than +/-1%
Charge Mode
  • Float (Current limiting, constant voltage)
Protection Fuse Spec.
  • Slow blow 5A 300V
Efficiency
  • More than 88% @ full load
Static Power Consumption
  • Max 3.5 W @ 110 Vac
  • Max 4.5 W @ 220 Vac
Suitable Battery Type
  • Gel, Lead Acid & AGM
Protection
  • Reverse polarity and short circuit protections
  • DC output Over/Under Voltage protections
  • DC output Over Current protection
  • AC input Over Voltage protection
  • Temperature sensor failure protection

Environment
Operating Temperature
  • -20 to +50 °C
Storage Temperature
  • -30 to +80 °C
Relative Humidity
  • Max. 90%
Vibration
  • 5.0 Gs @ 60 Hz

Physical Specifications
Dimensions
  • 208.0 (L) x 134.0 (W) x 63.0 (H) mm
  • 8.19 (L) x 5.28 (W) x 2.48 (H) inch
Weight
  • 0.89 Kg +/-2%
  • 1.96 lb +/-2%
