KUTAI CH4612 Automatic Battery Charger

KUTAI CH4612 Automatic Battery Charger

Regular price £102.00 GBP
Regular price Sale price £102.00 GBP
Sale Sold out
Shipping calculated at checkout.

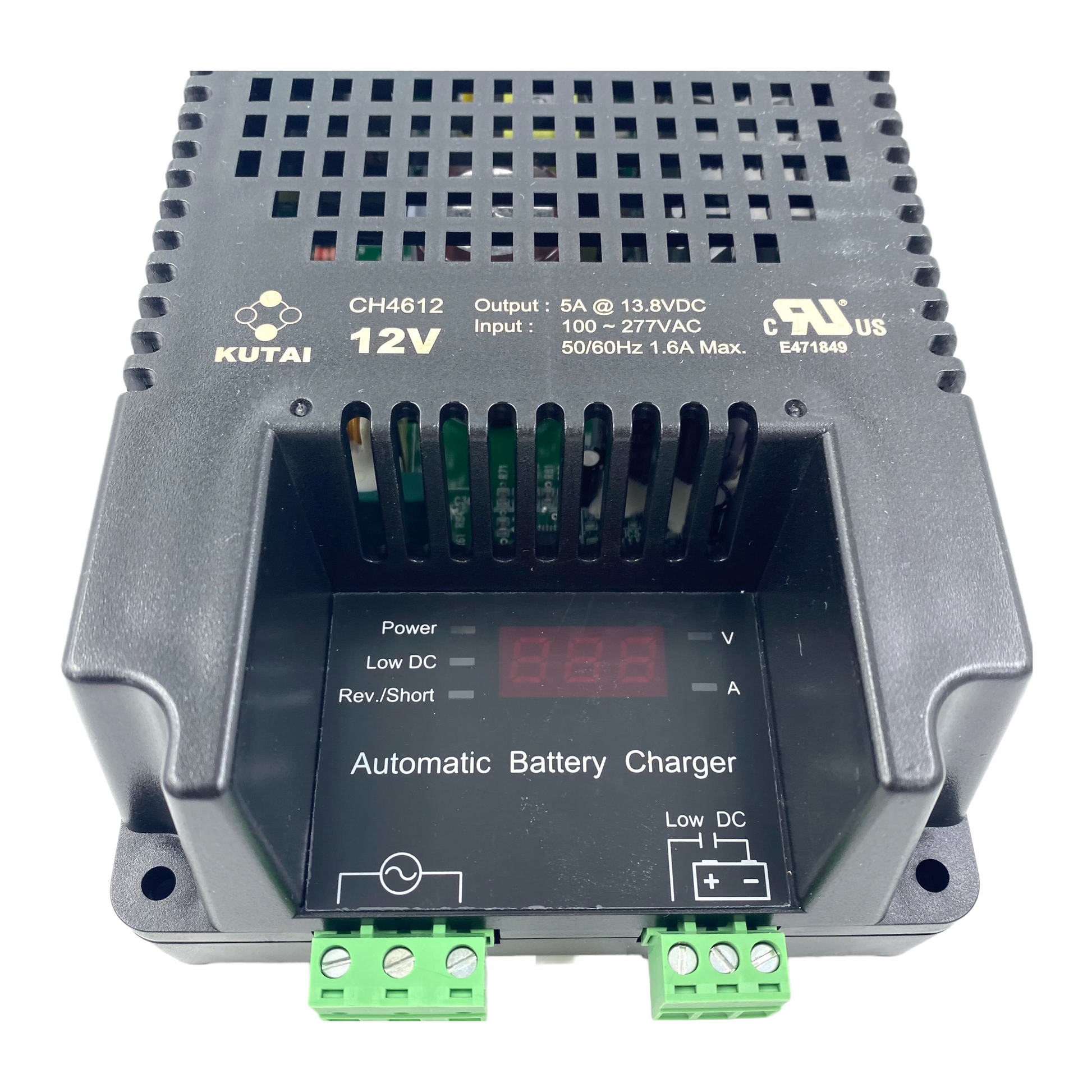

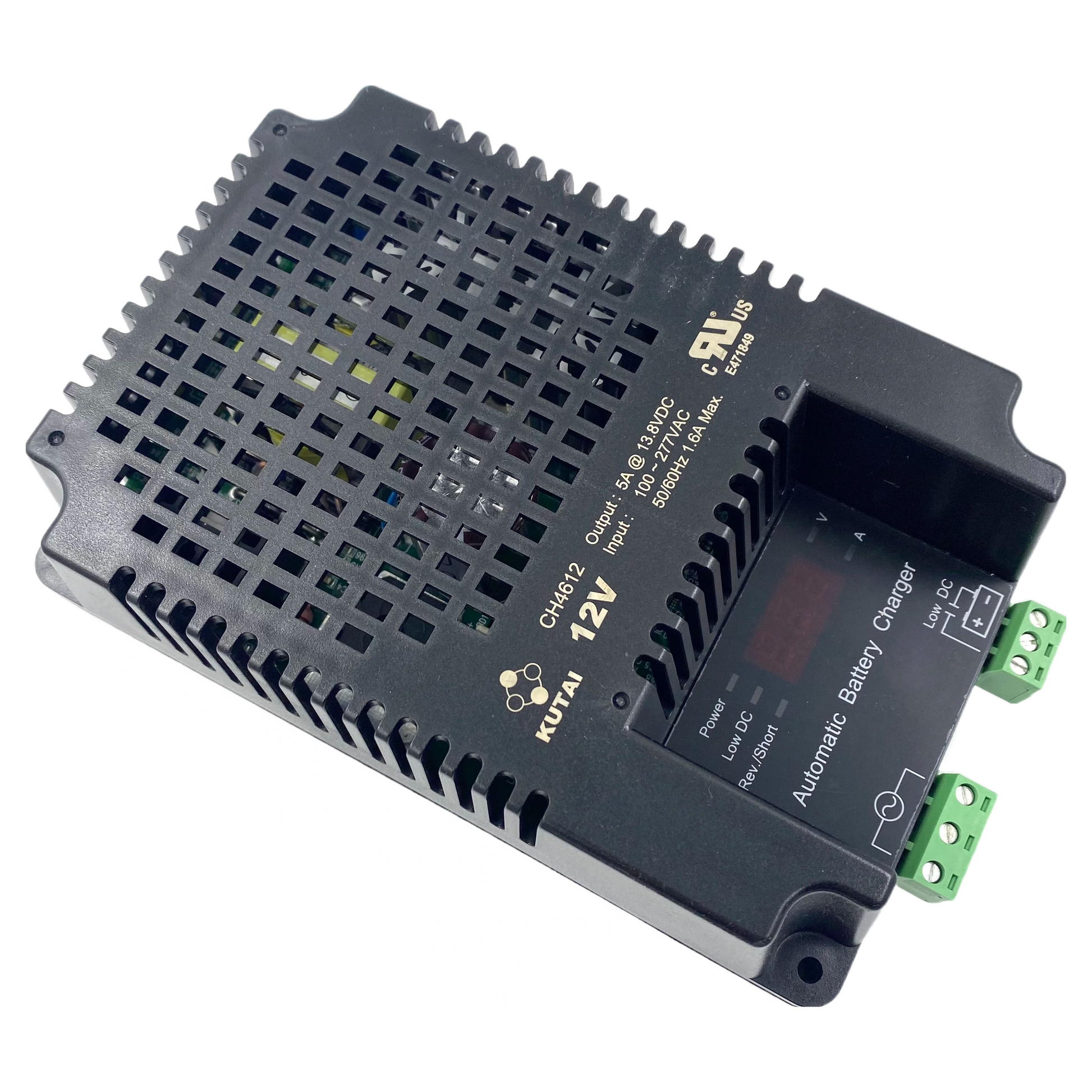

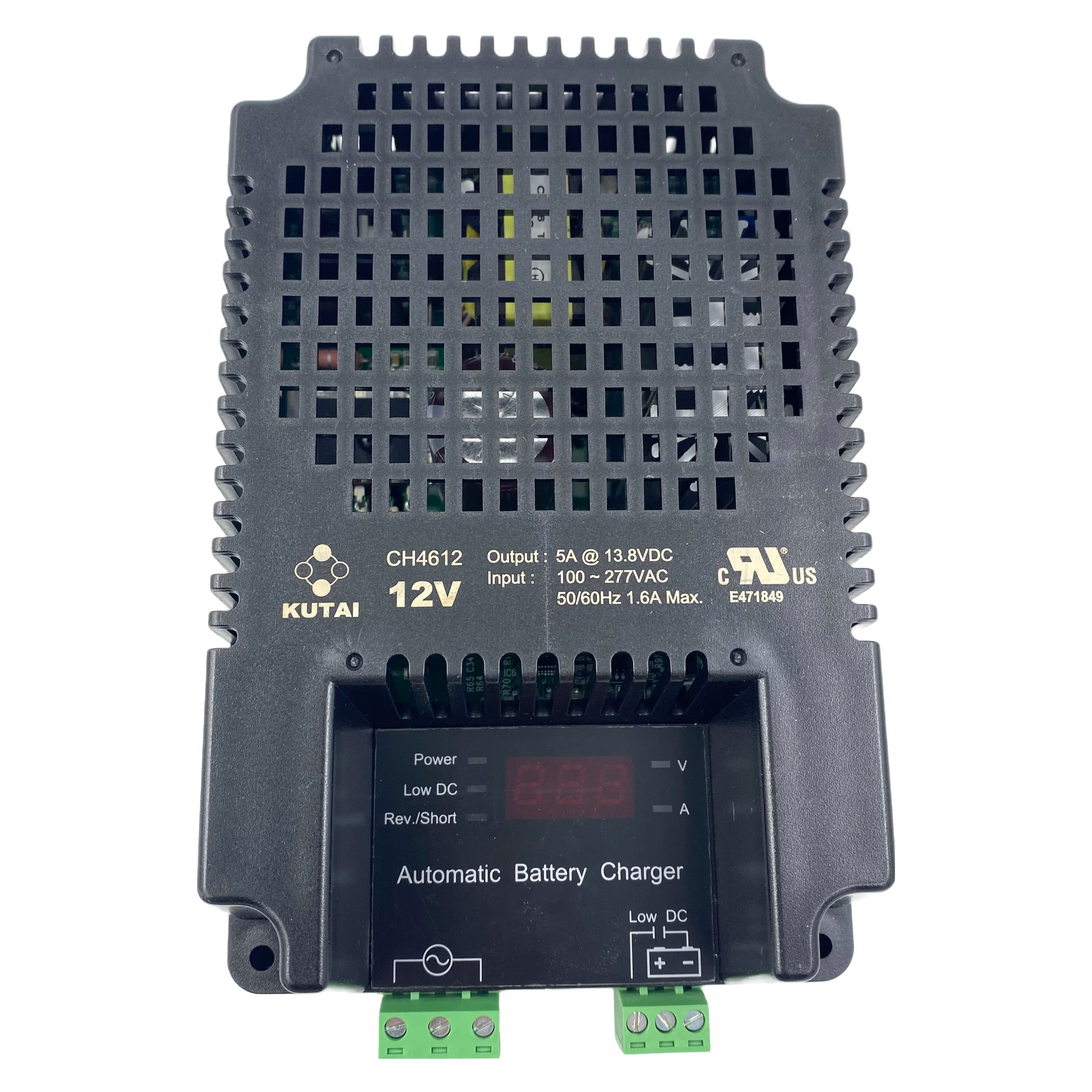

CH4612 12V Intelligent Automatic Battery Charger - designed for Gel, Lead Acid, and AGM batteries. It has indicator LEDs provide status information and fault conditions. Ideal for standby generator or other industrial applications. It can be Panel or DIN Rail Mounted.

£85.00 plus VAT

Ex stock - shipped Worldwide. For EURO or USD pricing please contact us:

Sales: info@sp-powerworld.com

Tel: +44 (0)115 923 2568 (United Kingdom)

Tel: (24-hour) +44 (0)7484709956 (United Kingdom)

 Features:

  • UL1236 listed Intelligent switch mode battery charger
  • Automatic charging under all conditions
  • Elevated component temperature will automatically reduce output power
  • Low battery voltage monitor with solid state battery negative alarm output
  • Charging current and voltage display
  • Short circuit and reverse polarity protections
  • No current drain when input power is off
  • Built-in AC power input micro fuse protection
  • Panel Mount or DIN Rail

Specifications:

Power Input
  • Voltage 100 to 277 Vac
  • Frequency 47 to 63 Hz
  • Current
  • CH4612:1.6A
  • CH4624:1.8A
DC Output
  • CH4612 13.8 Vdc, 5A Max.
  • CH4624 27.6 Vdc, 3A Max.
DC Voltage Regulation
  • Less than +/-1%
Charge Mode
  • Float
Alarm Output Capacity
  • 0.5A @ 40 Vdc
Suitable Battery Type
  • Gel, Lead Acid and AGM
Efficiency
  • More than 80% @ Full load%
Protection
  • Constant voltage, limited current
  • Reverse polarity and short circuit protections

Environment

Operating Temperature
  • --20 to +60 °C
Storage Temperature
  • -30 to +80 °C
Relative Humidity
  • Max. 90%
Vibration
  • 5.0 Gs @ 60 Hz

Physical Specifications

Dimensions
  • 175.0 (L) x 115.0 (W) x 60.0 (H) mm
  • 7.0 (L) x 4.5 (W) x 2.4 (H) inch
Weight
  • 0.52 Kg +/-2%
  • 1.15 lb +/-2%
