Stamford

AS440 AVR

AS440 AVR

Regular price £336.00 GBP
Regular price Sale price £336.00 GBP
Sale Sold out
Shipping calculated at checkout.

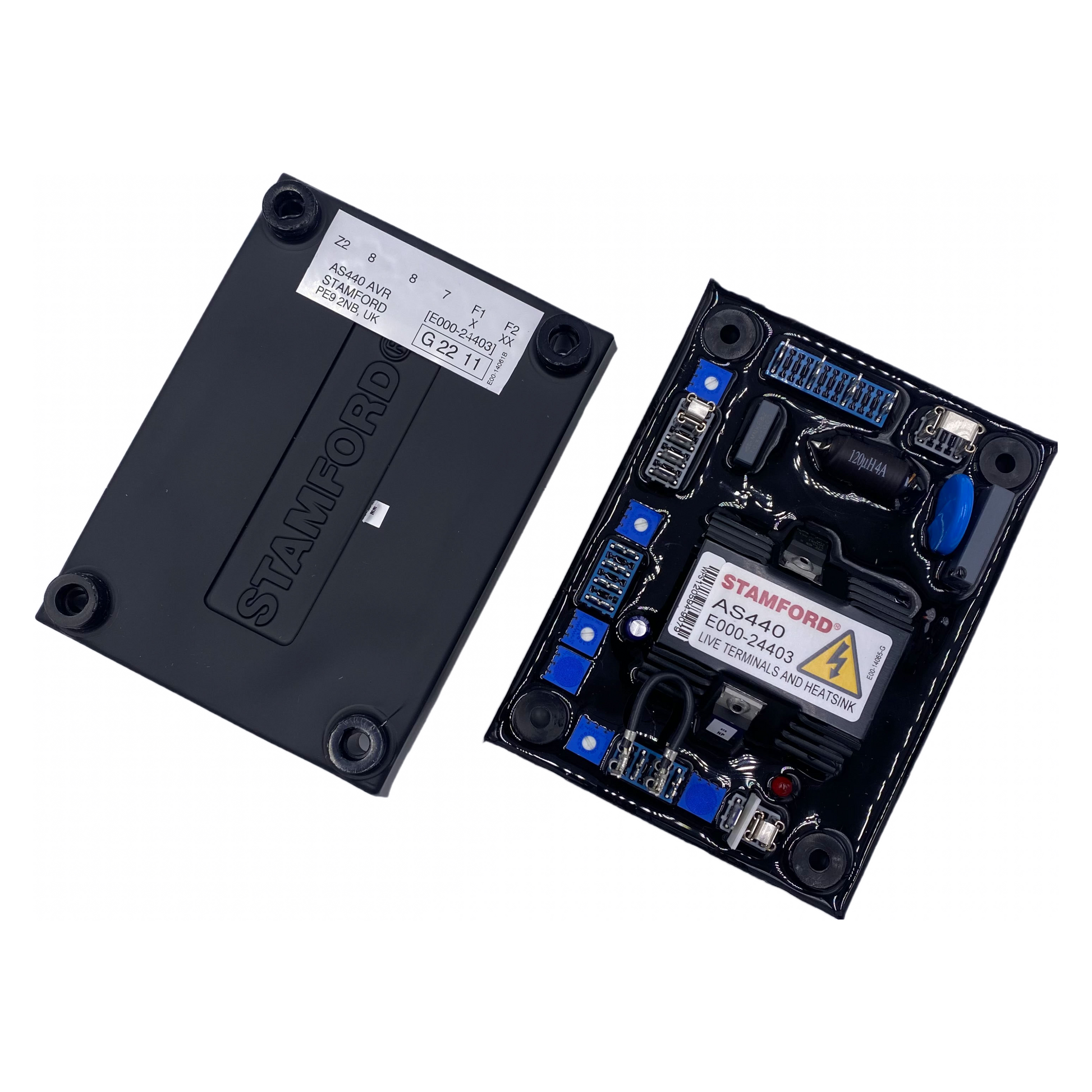

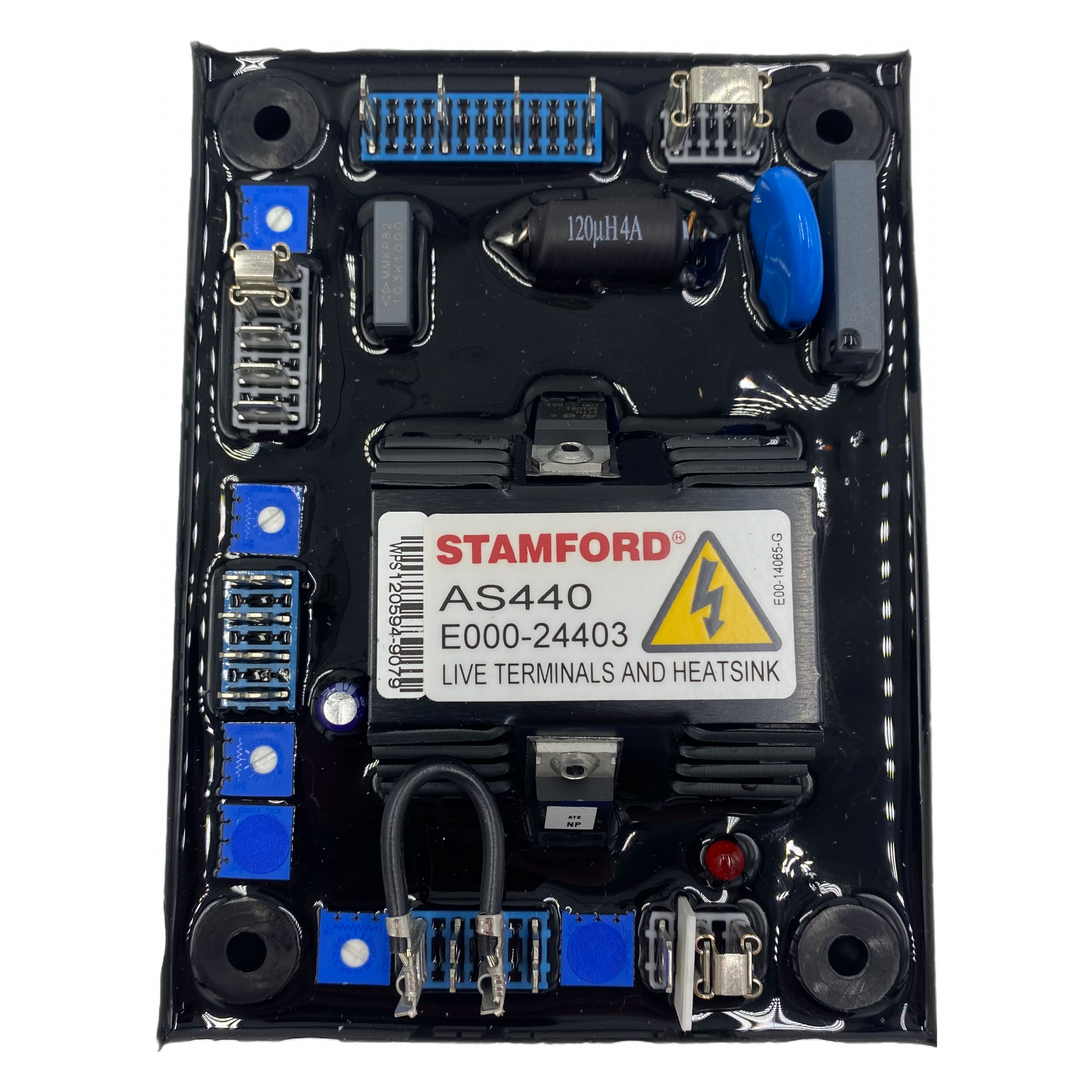

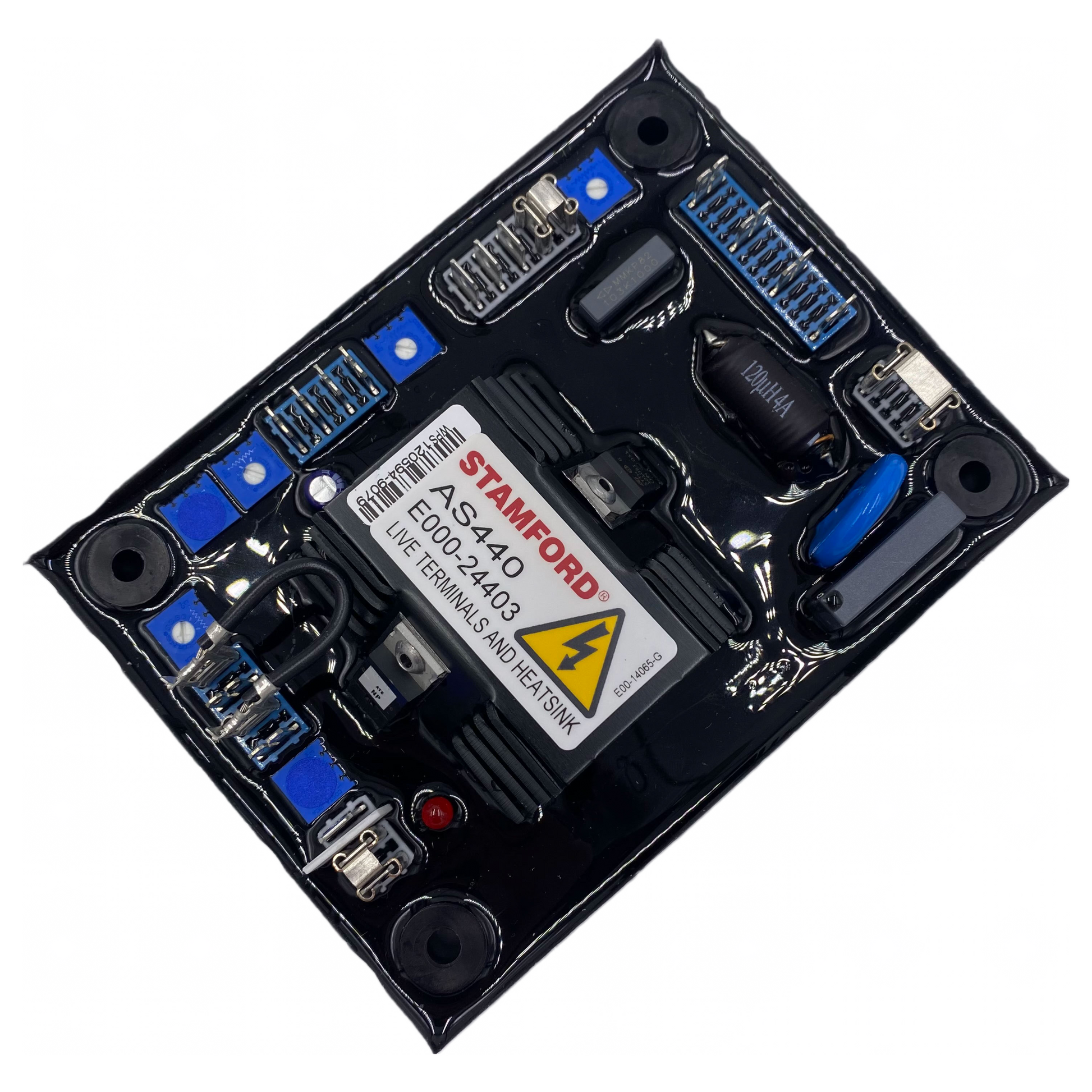

AS440 Automatic Voltage Regulator - Genuine and made in the United Kingdom.

E000-24403/1P - E000-234403

£280.00 plus VAT

Ex stock United Kingdom - shipped Worldwide. For EURO or USD pricing please contact us:

Sales: info@sp-powerworld.com

Tel: +44 (0)115 923 2568 (United Kingdom)

Tel: (24-hour) +44 (0)7484709956 (United Kingdom)

We are aware that there are poorly made illegal  / counterfeit Chinese models available on the market. Please note our products are Genuine, come with full warranty and have been sourced directly from the factory.

Features:

• Machine Volts to 97% in 300 ms • External Voltage Adjustment

• +/-10% with 1 kΩ, 1 W trimmer5 Under-Frequency Protection

• Set point 94% to 98% Hz 6 Unit Power Dissipation

• 12 W maximum • Build-up Voltage

• 4 VAC at AVR terminals

  • Analogue Input

    • Maximum input: +/- 5 VDC7

    • Sensitivity: 1V for 5% Alternator Volts (adjustable)

    • Input resistance 1 kΩ

  • Quadrature Droop Input

    • 10 Ω burden

    • Maximum sensitivity: 0.07 A for 5% droop, zero power factor

    • Maximum input: 0.33 A

  • Over-Voltage Detection

    • Set point: 65 VDC

    • Time delay: 10 s to 15 s (fixed)

  • Environmental

• Vibration
• 20 Hz to 100 Hz: 50 mm/sec • 100Hzto2kHz:3.3g

  • Operating temperature: -40 °C to +70 °C8

  • Relative Humidity 0 °C to 70 °C: 95%9

  • Storage temperature: -55 °C to +80 °C
